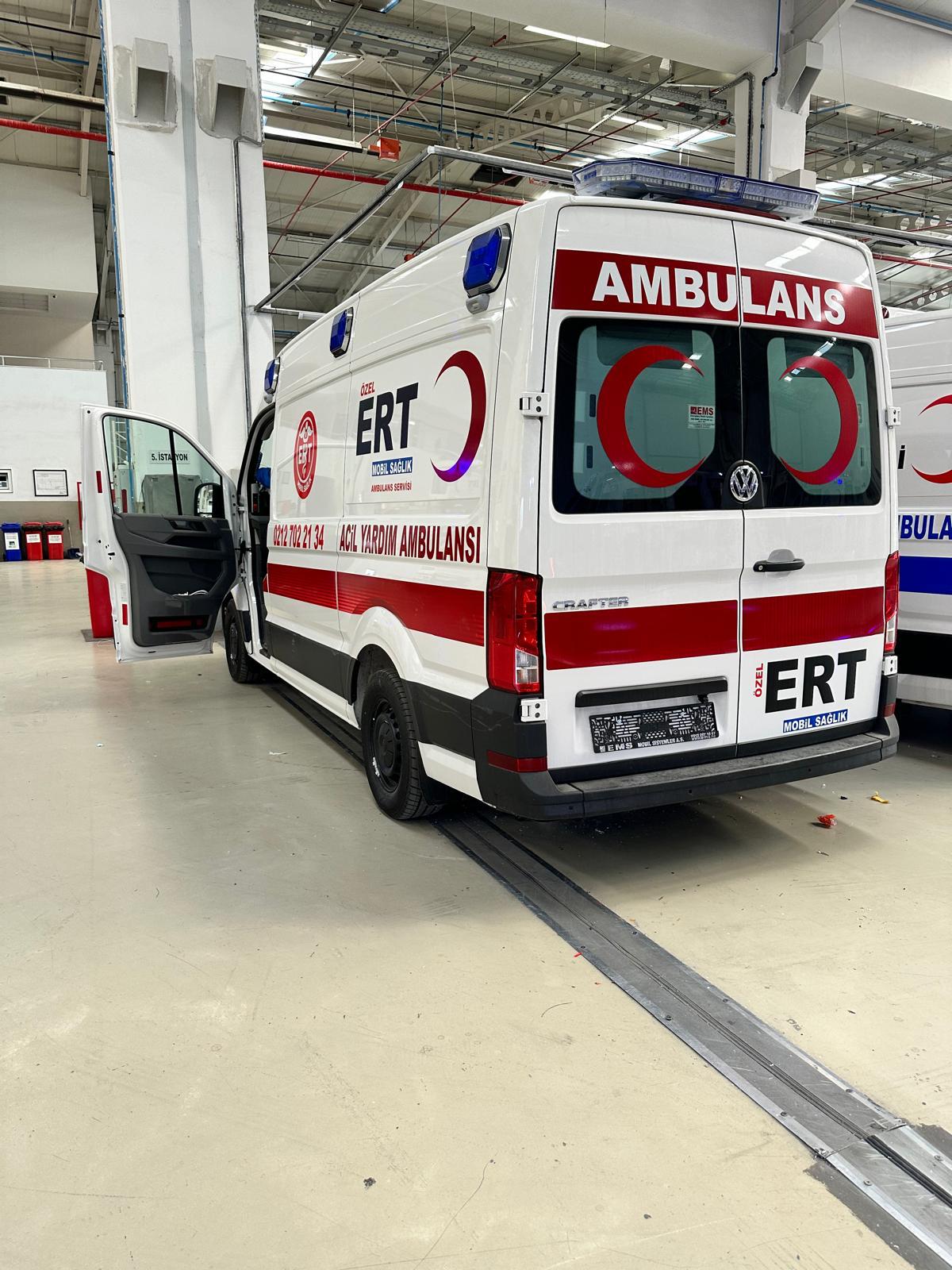

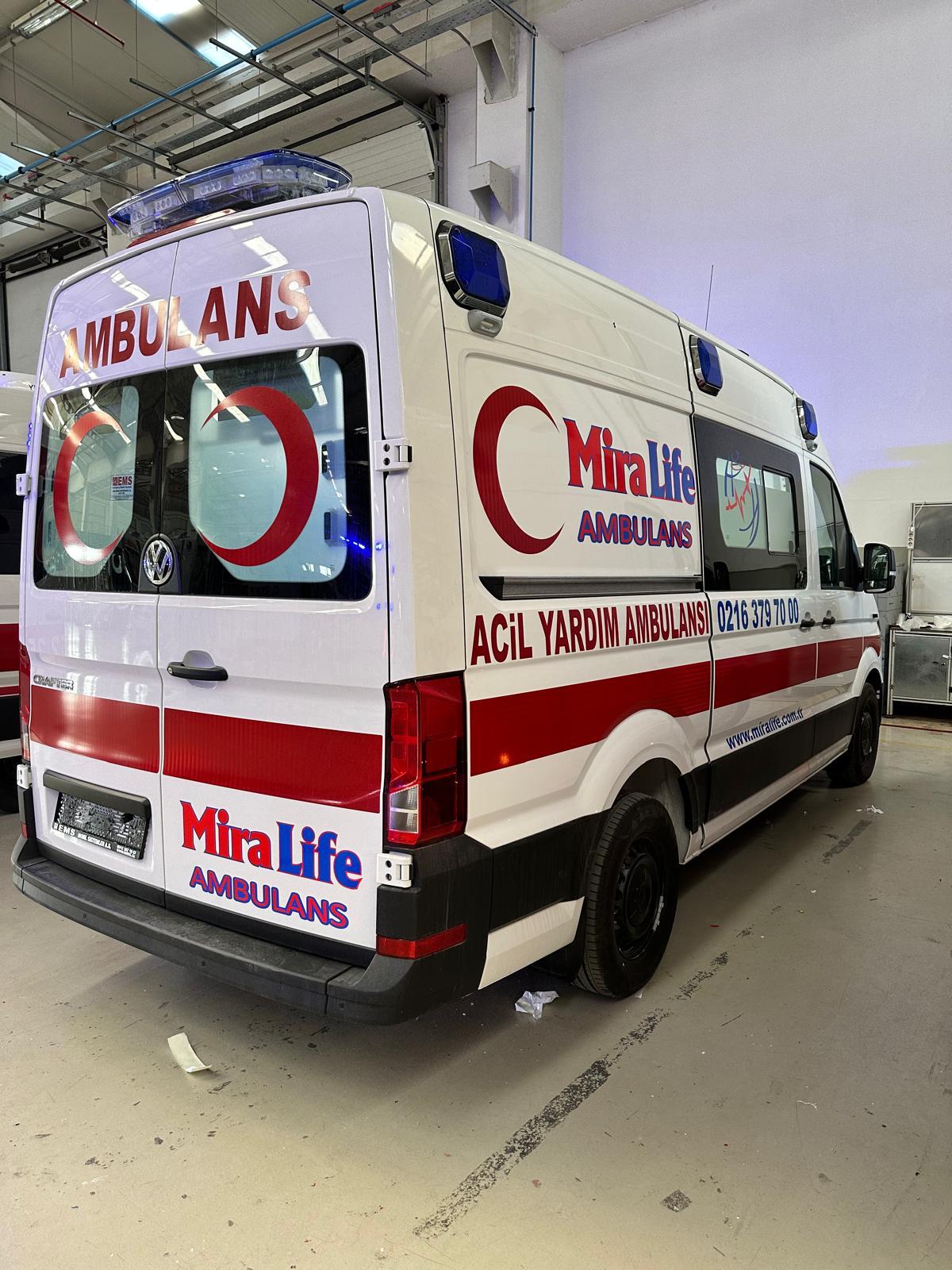

Volkswagen Crafter Ambulance
The Volkswagen Crafter Ambulance features a high roof, long chassis configuration, delivering exceptional performance and reliability for emergency medical services. Available with diesel engine and manual transmission, this ambulance is produced in right-hand drive as standard, with left-hand drive option available upon request. The spacious patient compartment is meticulously designed for efficient emergency care with thoughtful equipment placement and medical-grade finishes.
Technical Specifications
| Specification | Detail |
|---|---|
| Chassis | Volkswagen Crafter Long Chassis |
| Roof Configuration | High Roof |
| Engine | Diesel |
| Transmission | Manual |
| Steering | RHD (Standard) / LHD (Optional) |

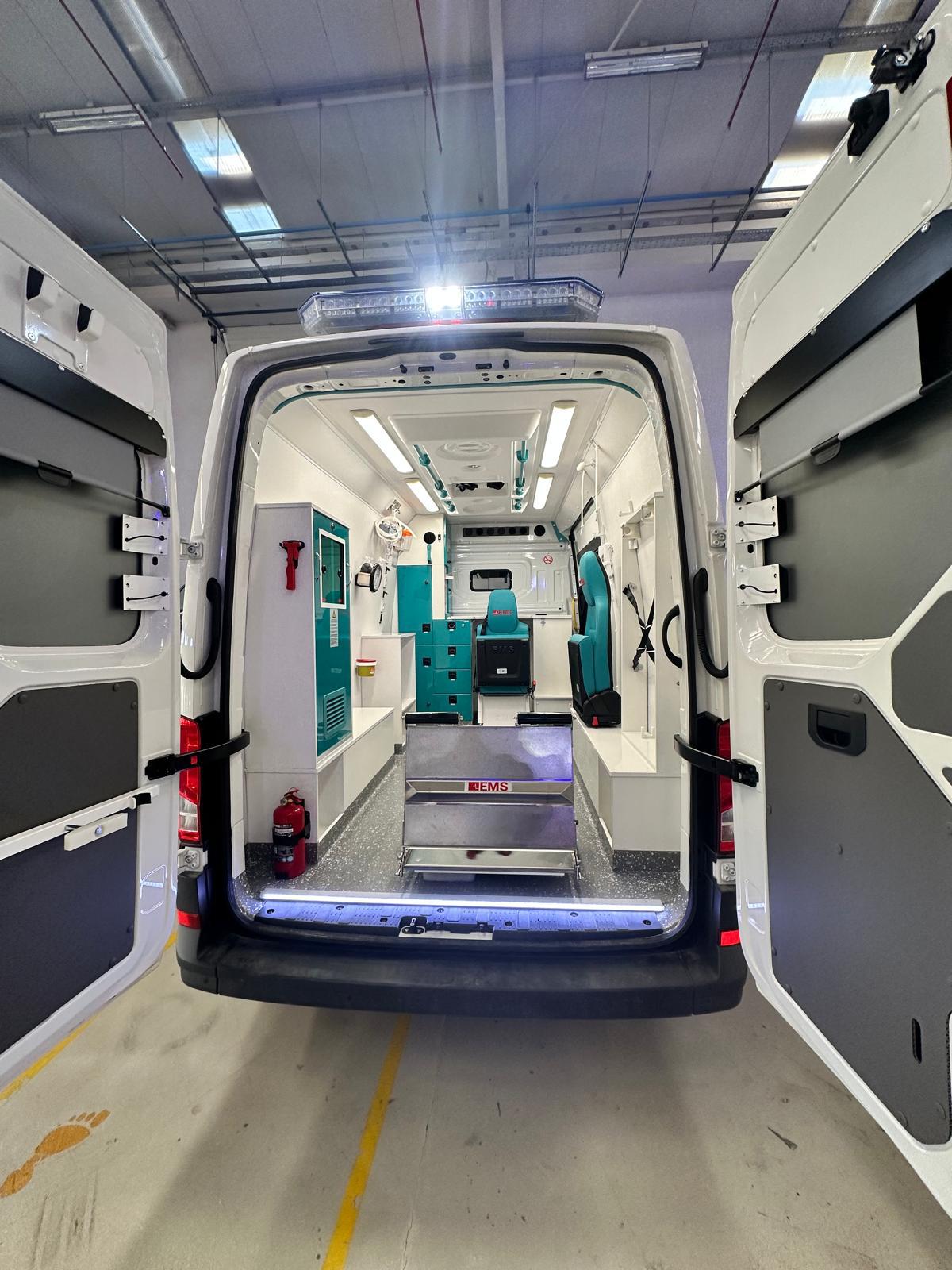

Patient Compartment Layout
Right Side Area
-
Oxygen cylinders with secure mounting
-
Oxygen humidification system
-
Oxygen blowing system for patient respiratory support
Left Side Area
-
Ambulance chair stretcher with integrated spine board
-
Patient seat located under spine board (facing same direction as companion seat)
-
Doctor’s seat positioned for easy patient intervention
Medical Cabinetry & Interior
Cabinet Construction
-
Foamboard-based medical equipment cabinets
-
Cabinet doors and ceiling available in orange (standard)
-
Other color options available upon request
Wall Construction
-
Right and left sides coated with one-piece ABS material (approximately 6mm thickness)
-
Filling material behind ABS for sound and heat insulation
-
Reinforced metal sheet behind ABS for secure medical equipment mounting
Lighting & Ventilation
Illumination
-
Four LED fluorescent lamps providing sufficient illumination throughout patient compartment
-
Strategic placement for medical procedure lighting
Ventilation System
-
Turbo ventilation unit in ambulance ceiling
-
Provides adequate air circulation
-
Air exchange rate: approximately 20 times per minute
-
Ensures fresh air supply and temperature regulation
Medical Equipment (Emergency Type)
| Device | Specifications |
|---|---|
| Defibrillator | 12-channel device, compatible with 12V and 220V power |
| Ventilation Device | For patient breathing support, 12V operation |
| Vacuum Suction Device | For vacuum procedures, 12V operation |
Electrical System
-
Primary medical devices operate on 12V electricity
-
Defibrillator compatible with 220V operation
-
Inverter device provides 220V electricity when required
-
Reliable power distribution for all medical equipment
Key Features Summary
| Feature | Specification |
|---|---|
| Steering Options | RHD (standard), LHD (available) |
| Oxygen Systems | Cylinders, humidification, blowing system |
| Seating | Chair stretcher, patient seat, doctor’s seat |
| Cabinetry | Foamboard-based, orange finish (custom colors available) |
| Wall Material | 6mm ABS with insulation backing |
| Lighting | 4 LED fluorescent lamps |
| Ventilation | Turbo unit, 20 air changes per minute |
| Medical Devices | Defibrillator (12/220V), ventilator (12V), vacuum (12V) |
| Power System | Inverter for 220V conversion |
Contact Information
Infinity Chassis Units
Ankara, Turkey
Email: sales@ambulancetech.com
Telephone: +90 555 104 06 48
Choose Volkswagen Crafter Ambulance for a dependable, high-quality solution for all your emergency medical transportation needs.
