Introduction
The interior of a Mercedes ambulance is where life-saving care actually happens. While the Sprinter chassis provides legendary reliability on the road, it is the patient compartment design that determines how efficiently medical staff can work during transport.
Whether you are equipping a BLS patient transport vehicle or a full ALS mobile ICU, understanding the interior layout options helps you make the right decision for your clinical protocols.
In this guide, we explore the interior dimensions, layout configurations, equipment placement, and design features of Mercedes Sprinter ambulances manufactured by Infinity Chassis Units.
📌 Related: Mercedes Sprinter Ambulance Complete Guide | Mercedes Ambulance Price Guide
Mercedes Ambulance Interior Dimensions
| Measurement | Sprinter L2H2 | Sprinter L3H2 | Sprinter L4H3 |
|---|---|---|---|
| Wheelbase | 3,665 mm | 4,325 mm | 4,325 mm |
| Interior Length (patient area) | 3,100 mm | 4,100 mm | 4,400 mm |
| Interior Width | 1,780 mm | 1,780 mm | 1,780 mm |
| Interior Height (H2 – High roof) | 1,900 mm | 1,900 mm | N/A |
| Interior Height (H3 – Super high roof) | N/A | 2,100 mm | 2,100 mm |
| Usable floor area | 5.5 m² | 7.3 m² | 7.8 m² |
Why size matters:
- H2 (High roof – 1,900 mm): Full standing height for most medical staff. Suitable for BLS and ILS.
- H3 (Super high roof – 2,100 mm): Extra headroom for tall staff, ceiling-mounted equipment, and better airflow. Essential for ALS/ICU.
Mercedes Ambulance Interior Layout Options
Layout 1: BLS Patient Transport (Type II Van)
This layout is designed for stable patient transfers and non-emergency transport.
| Zone | Configuration |
|---|---|
| Stretcher position | Longitudinal (driver side) |
| Attendant seat | 1-2 foldable seats (passenger side) |
| Action area | Limited to one side of stretcher |
| Storage | Overhead cabinets (driver side) |
| Oxygen | 2 x 10L cylinders (rear cabinet) |
| Equipment | Basic medical kit, spine board, first aid |
| Lighting | Ceiling LED, loading light |
Typical operators: Private transport companies, nursing homes, clinics
Layout 2: BLS Emergency Response (Type II Van – High Roof)
This layout adds emergency response capability while maintaining BLS focus.
| Zone | Configuration |
|---|---|
| Stretcher position | Longitudinal (center or driver side) |
| Attendant seats | 2 foldable seats (both sides) |
| Action area | Both sides of stretcher |
| Storage | Overhead cabinets + under-seat storage |
| Oxygen | 2 x 10L or 2 x 15L cylinders |
| Equipment | AED defibrillator, suction unit, advanced airway |
| Lighting | Ceiling LED + spot procedure light |
Typical operators: Municipal EMS, volunteer services, rural clinics

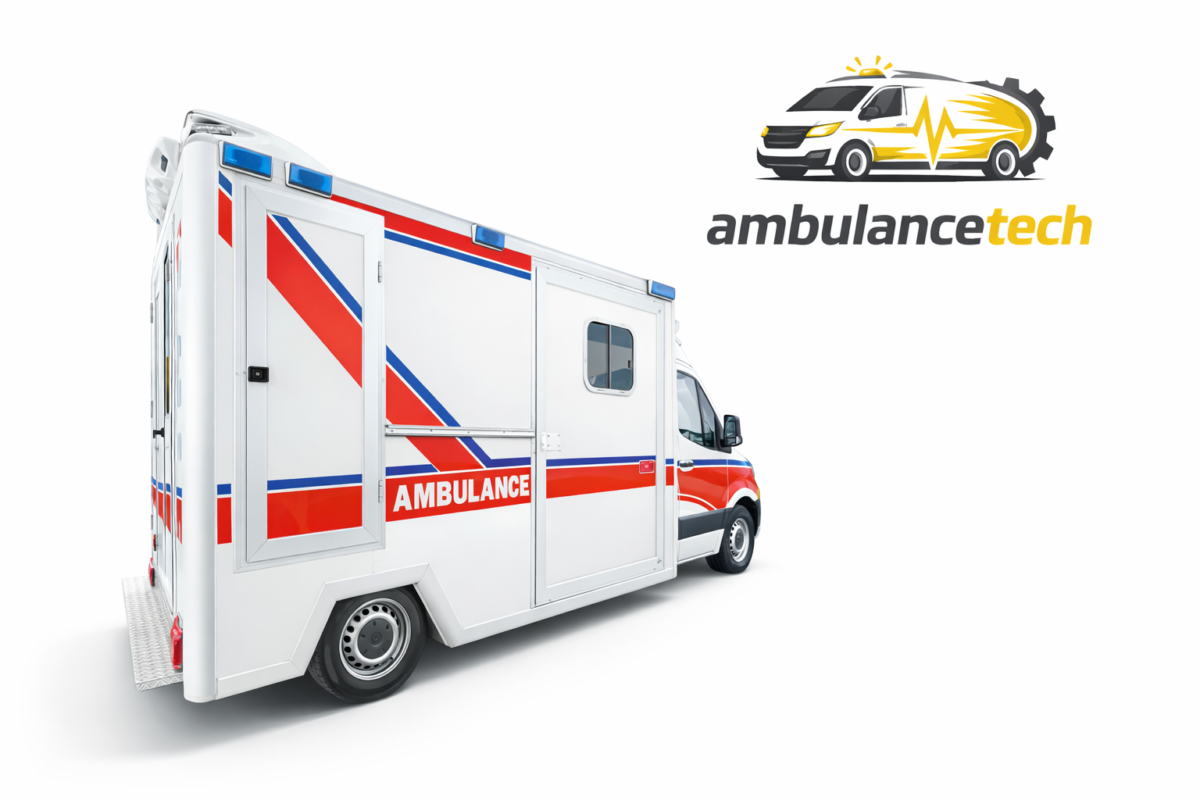

Layout 3: ALS / ICU (Type III Box – Super High Roof)
This layout is designed for advanced life support and critical care transport.
| Zone | Configuration |
|---|---|
| Stretcher position | Longitudinal (center for 360° access) |
| Attendant seats | 2-3 foldable or fixed seats |
| Action area | Both sides of stretcher |
| Storage | Full cabinetry + overhead lockers + under-seat |
| Oxygen | 2 x 15L or central system with 2,000+ liters |
| Equipment | Ventilator, cardiac monitor, infusion pumps (2-4 channels), suction |
| Electrical | 2,000-3,000W inverter, auxiliary battery |
| Lighting | Ceiling LED + spot + dimmable night lights |
| Climate | Independent HVAC with HEPA filtration |
Typical operators: Hospital-based EMS, ICU transfer teams, air ambulance backup
Layout 4: Extended Length / Multi-Patient (L4H3 Box)
This layout uses the long wheelbase variant for additional capacity.
| Zone | Configuration |
|---|---|
| Stretcher position | 1 primary + 1 secondary (tandem or side-by-side) |
| Attendant seats | 3-4 foldable seats |
| Action area | Both sides for primary stretcher |
| Storage | Extended cabinetry throughout |
| Oxygen | 4 x 10L or central system |
| Equipment | Full ALS for primary, BLS for secondary |
| Best for | Mass casualty, patient transport with family |
Typical operators: Disaster response, military, teaching hospitals
Mercedes Ambulance Interior Features by Component
Flooring
| Feature | Specification |
|---|---|
| Material | Marine-grade plywood (15-18mm) |
| Covering | Anti-bacterial, non-slip vinyl |
| Seams | Heat-welded, waterproof |
| Coved corners | Yes (prevents fluid accumulation) |
| Colors | Light gray or beige (standard) |
Cabinetry
| Feature | BLS Standard | ALS Premium |
|---|---|---|
| Material | PVC fiberglass | Fiberglass with soft-close |
| Surfaces | Smooth, easy-clean | Anti-bacterial coating |
| Doors | Hinged with secure latches | Hinged or sliding with soft-close |
| Drawers | Standard slides | Full-extension, heavy-duty |
| Countertops | Laminated | Anti-bacterial solid surface |
Attendant Seating
| Seat Type | Features | Location |
|---|---|---|
| Foldable (standard) | Under-seat storage, 3-point belt, backrest | Side wall |
| Fixed (premium) | Swivel base, adjustable height, 3-point belt | Side wall or forward-facing |
| Rear-facing (specialty) | For monitoring patient during transport | Behind stretcher head |
Stretcher Systems
| Stretcher Type | Loading | Best For |
|---|---|---|
| Manual hydraulic | Manual pumping | BLS, patient transport |
| Electric | Powered lift | ALS, frequent use |
| Bariatric | Hydraulic or electric | Patients up to 500 kg |
| Stretcher locking system | Floor-mounted, automatic engagement | All configurations |
Mercedes Ambulance Oxygen System
| Component | BLS | ILS | ALS |
|---|---|---|---|
| Cylinders | 2 x 10L | 2 x 10L or 2 x 15L | 2 x 15L or central |
| Outlets | 1-2 | 2-3 | 3-4 |
| Flowmeters | 1-2 | 2 | 2-3 |
| Humidifiers | Optional | Optional | Standard |
| Oxygen hoses | 2 | 3 | 4 |
Mercedes Ambulance Electrical System
Standard BLS Electrical
| Component | Specification |
|---|---|
| Auxiliary battery | 100-150 Ah deep-cycle AGM |
| Inverter | 1,000-1,500W pure sine wave |
| Medical outlets (230V) | 2 |
| Medical outlets (12V) | 2 |
| USB ports | 2 |
| Control panel | Analog with battery status |
| Shore power | External hookup with charger |
ALS / ICU Electrical
| Component | Specification |
|---|---|
| Auxiliary battery | 200-300 Ah lithium or dual AGM |
| Inverter | 2,000-3,000W pure sine wave |
| Medical outlets (230V) | 4-6 |
| Medical outlets (12V) | 4 |
| USB ports | 4 |
| Control panel | Digital touchscreen with monitoring |
| Shower power | Automatic transfer switch |
| Generator backup | Optional portable |
Mercedes Ambulance Lighting
Standard Lighting Package (BLS)
| Light Type | Purpose | Specification |
|---|---|---|
| Ceiling LED | General illumination | Dimmable, 12V, 2-4 units |
| Loading light | Rear door area | LED flood, door-activated |
| Step light | Side door entry | LED, door-activated |
Premium Lighting Package (ALS)
| Light Type | Purpose | Specification |
|---|---|---|
| Ceiling LED | General illumination | Dimmable, 4-6 units |
| Spot LED (procedure) | Clinical work | Focused beam, adjustable arm, 1-2 units |
| Night light | Low-light monitoring | Red LED, dimmable |
| Loading light | Rear door area | LED flood, switch-activated |
| Step light | Side door entry | LED, door-activated |
| Reading light | Attendant area | LED, swivel |
Mercedes Ambulance Climate Control
Standard HVAC (BLS)
| Feature | Specification |
|---|---|
| Patient compartment AC | Roof-mounted, engine-driven |
| Heating | Engine heat (via vehicle HVAC) |
| Ventilation | Roof fan (one) |
| Temperature range | 18-30°C capability |
Premium HVAC (ALS / ICU)
| Feature | Specification |
|---|---|
| Patient compartment AC | Independent roof-mounted, electric or engine-driven |
| Heating | Diesel-fired heater (2-4 kW) + engine heat |
| Ventilation | Roof fan (2) with rain sensor |
| Filtration | HEPA (optional) |
| Temperature range | 16-25°C maintainable |
| Air changes | Minimum 6 per hour |
Mercedes Ambulance Medical Equipment Placement (ALS Configuration)
| Equipment | Location | Mounting |
|---|---|---|
| Defibrillator/monitor | Head of stretcher (wall bracket) | Secured, quick-release |
| Transport ventilator | Shelf above action area | Lockable, anti-vibration |
| Infusion pumps | Pole-mounted or shelf | 2-4 channels |
| Suction unit | Wall-mounted (fixed) + portable backup | At head position |
| Oxygen flowmeter | Wall-mounted | At head position |
| Medication box | Lockable cabinet | Temperature-controlled optional |
| Sharps container | Under-counter | Secured, accessible |
| Biohazard waste | Under-counter | Secured, easy-clean |
| PPE storage | Near door | Accessible from outside |
| Patient records | Lockable drawer | Near attendant seat |
Mercedes Ambulance Interior by Medical Level
BLS (Basic Life Support) Interior
| Feature | Configuration |
|---|---|
| Stretcher | Manual hydraulic, 1 unit |
| Oxygen | 2 x 10L cylinders |
| Monitoring | Pulse oximeter, BP cuff |
| Suction | Portable unit |
| Storage | Basic cabinets |
| Lighting | Ceiling LED, loading light |
| Seating | 1-2 attendant seats |
ILS (Intermediate Life Support) Interior
| Feature | Configuration |
|---|---|
| Stretcher | Manual or electric |
| Oxygen | 2 x 10L or 2 x 15L |
| Monitoring | AED, portable monitor |
| Suction | Fixed + portable |
| Storage | Enhanced cabinetry |
| Lighting | Ceiling + spot LED |
| Seating | 2 attendant seats |
ALS (Advanced Life Support) Interior
| Feature | Configuration |
|---|---|
| Stretcher | Electric, with loading system |
| Oxygen | 2 x 15L or central system |
| Monitoring | Full defibrillator/monitor (12-lead) |
| Ventilation | Transport ventilator |
| Infusion | 2-4 infusion pumps |
| Suction | Fixed high-capacity |
| Storage | Full modular cabinetry |
| Lighting | Ceiling + spot + dimmable |
| Seating | 2-3 attendant seats |
Sprinter vs Competitors: Interior Space Comparison
| Feature | Mercedes Sprinter | Ford Transit | Renault Master |
|---|---|---|---|
| Interior Height | 1,900-2,100 mm | 1,800-2,000 mm | 1,800-1,900 mm |
| Interior Width | 1,780 mm | 1,750 mm | 1,770 mm |
| Max interior length | 4,400 mm | 4,200 mm | 4,000 mm |
| Standing access | ✓ Full | ✓ Full | Limited |
| Best for | Premium ALS, ICU | Cost-effective ALS | Budget BLS |
Frequently Asked Questions
Q: What is the interior height of a Mercedes Sprinter ambulance?
A: H2 (high roof): 1,900 mm (75 inches). H3 (super high roof): 2,100 mm (82 inches).
Q: Can medical staff stand upright in a Mercedes ambulance?
A: Yes. Both H2 and H3 roof options provide full standing height.
Q: How many medical staff can work inside a Mercedes ambulance?
A: BLS/ILS: 1-2 attendants. ALS/ICU (Type III box): 2-3 attendants. L4H3 extended: 3-4 attendants.
Q: What is the standard interior width?
A: 1,780 mm (70 inches) for all Sprinter models.
Q: Is the interior easy to clean after infectious patient transport?
A: Yes. All surfaces are anti-bacterial, non-porous, and seamless. Flooring has heat-welded seams.
Q: Can the interior layout be customized?
A: Yes. Infinity Chassis Units designs each interior according to client protocols and equipment brands.
Q: What is the difference between Type II and Type III interior?
A: Type II is a van conversion with limited width. Type III is a modular box with full standing height and more working space on both sides of the stretcher.
