Mercedes Mobile Dental Clinic
Mercedes Dental Mobile Clinic: Overview
The Mercedes Dental Mobile Clinic represents the pinnacle of mobile dentistry. AmbulanceTech manufactures premium mobile dental clinics on Mercedes-Benz chassis, combining German engineering excellence with medical-grade interior fabrication.
Our Mercedes dental mobile clinic models are designed for dental professionals who demand the very best – superior ride quality, legendary reliability, and prestige that reflects your practice standards.
Mercedes Dental Mobile Clinic Models

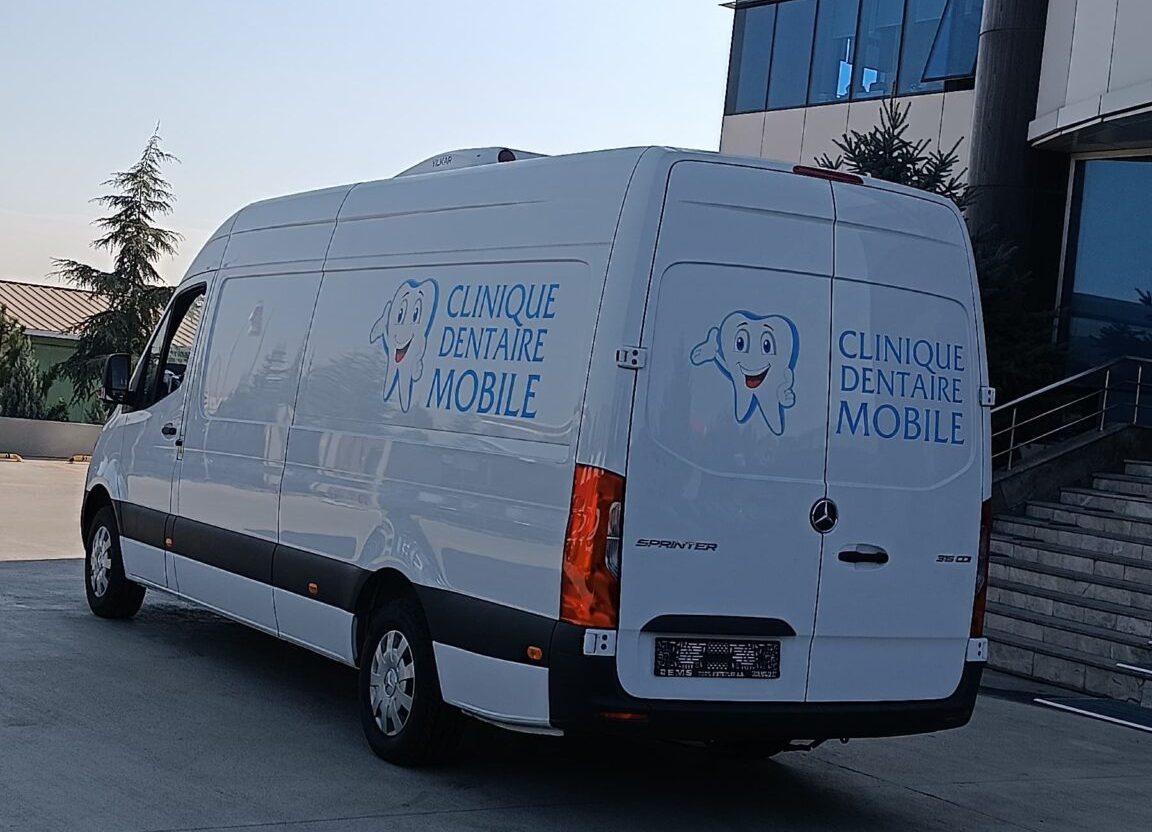

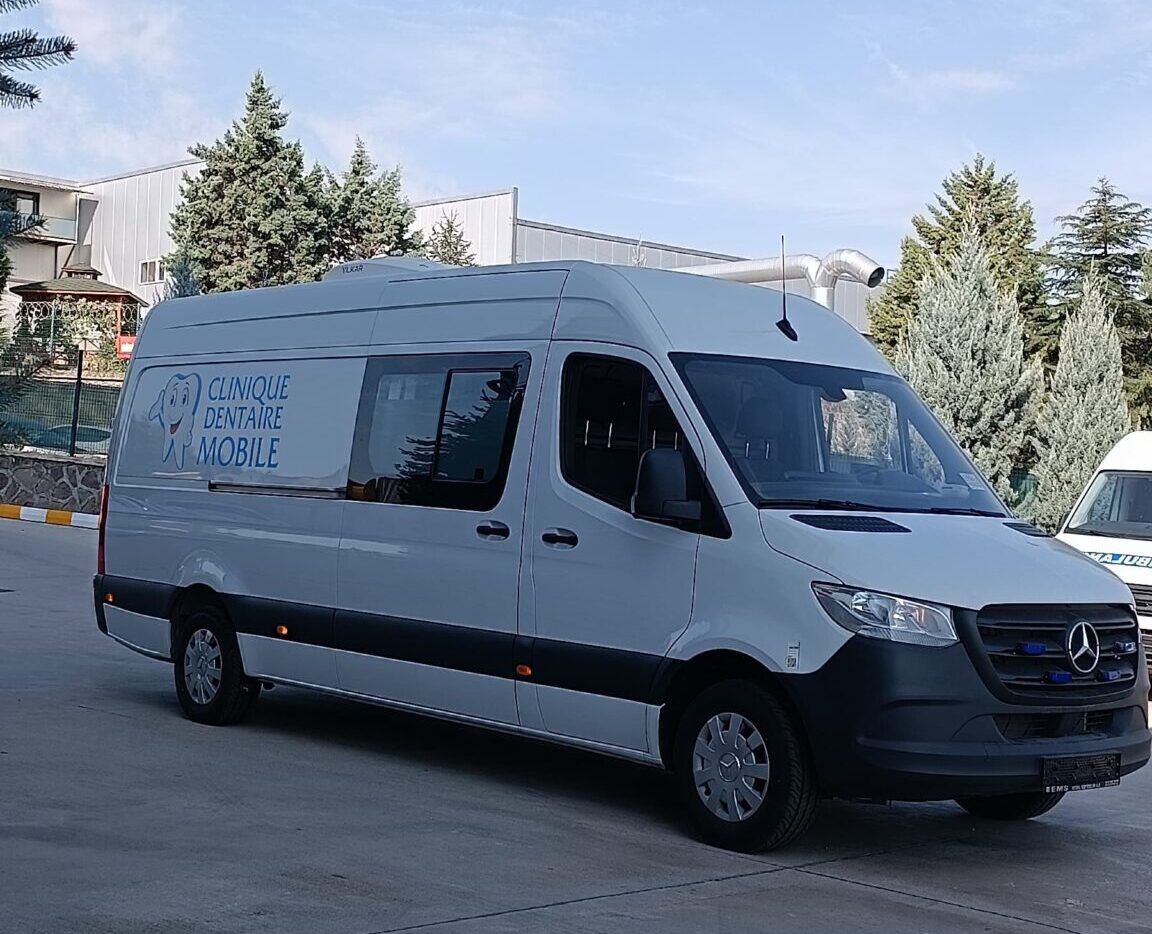

Model MB1000: Mercedes Sprinter Dental Van
Built on the Mercedes-Benz Sprinter high roof chassis, our most popular Mercedes dental mobile clinic offers exceptional comfort and capability.
| Specification | Details |
|---|---|
| Chassis | Mercedes-Benz Sprinter 314/414 CDI (2026) |
| Engine | 2.1L turbo diesel, 161 HP, 360 Nm torque |
| Fuel | Diesel |
| Transmission | 7-speed automatic (manual optional) |
| Interior Height | 1,940 mm (6.4ft) – full standing |
| Treatment Area | 1 dental chair + hygiene station |
| GVWR | 3,500 kg |
| Fuel Capacity | 75 liters |
2026 Price: $98,000 – 125,000 USD
Model MB2000: Mercedes Sprinter Dual-Chair Dental Bus
For higher patient volume, our extended Sprinter configuration adds a second treatment chair.
| Specification | Details |
|---|---|
| Chassis | Mercedes-Benz Sprinter 516/519 CDI |
| Engine | 2.1L turbo diesel, 188 HP, 440 Nm torque |
| Fuel | Diesel |
| Transmission | 7-speed automatic |
| Interior Height | 1,940 mm (6.4ft) |
| Treatment Area | 2 dental chairs + panoramic X-ray |
| GVWR | 5,000 kg |
| Fuel Capacity | 93 liters |
2026 Price: $145,000 – 185,000 USD
Model MB3000: Mercedes Atego Dental Trailer
For maximum space, our Mercedes dental trailer solution offers clinic-grade capacity.
| Specification | Details |
|---|---|
| Chassis | Mercedes-Benz Atego truck (prime mover) |
| Trailer | Tandem-axle, expandable sides available |
| Interior Height | 2,200 mm (7.2ft) |
| Treatment Area | 2 chairs + panoramic + consult room |
| Setup Time | 15 minutes (30 minutes with expansion) |
2026 Price: $155,000 – 210,000 USD

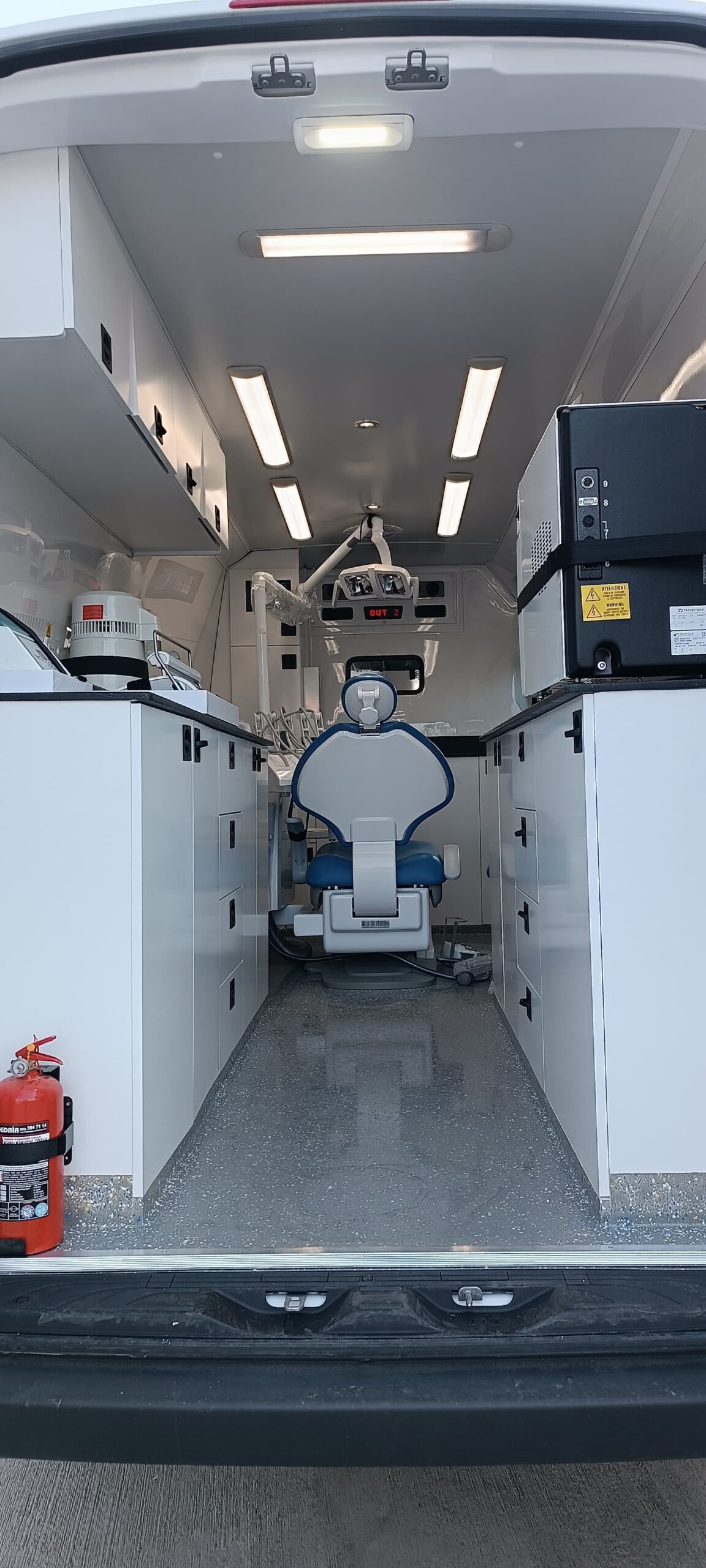

Mercedes Dental Mobile Clinic: Interior Features
Every AmbulanceTech Mercedes dental mobile clinic includes premium interior components designed for clinical excellence.
Dental Patient Chair
The dental patient chair is positioned centrally in the vehicle for optimal workflow:
-
Operation: Hydraulic or electromechanical gear system
-
Performance: Silent, vibration-free operation
-
Surface: Anti-dust, medical-grade upholstery
-
Positioning: Easily converts to Trendelenburg position
-
Armrests: Both sides, adjustable and padded
-
Backrest: Orthopedic aluminum construction with ergonomic padding
-
Controls: Intuitive foot and hand controls
Treatment Unit
The treatment unit mounts directly to the dental patient chair:
-
Rotation: 150-degree operating range
-
Modular Design: 4 or 5 total modules
-
Module 1: Air and water hose with quick-connect
-
Module 2: Micromotor with LED lighting
-
Module 3: Dual air exhausters (high-volume suction)
-
Module 4: Kavitron / ultrasonic scaler
-
Module 5: Optional additional handpiece
Anti-Retraction System: Prevents air and water from flowing backward after treatment – critical for infection control.
Unit Tablet
The control tablet of the Mercedes dental mobile clinic features:
-
Vertical adjustment range for ergonomic positioning
-
Touchscreen interface
-
Programmable settings for each dentist
-
Integrated timer and procedure tracking
Cuspidor
-
Construction: One-piece ceramic, seamless
-
Color: Matches clinic interior color scheme
-
Solid Waste Trap: Removable, easy-clean design
-
Water Supply: Automatic fill with anti-splash design
Reflector / Operating Light
-
Mounting: Attached to main structure via adjustable arm
-
Light Source: LED, color-corrected (5,500K)
-
Intensity: 30,000 – 45,000 lux adjustable
-
Features: Sterilizable handles, autoclavable
Kavitron / Ultrasonic Scaler
-
Mounting: Integrated into treatment tablet
-
Handpiece: 3 edges included
-
Edge Key: Quick-change system
-
Controls: Adjustable power and water flow
Micromotor System
-
Type: Electric micromotor with LED handpiece
-
Speed Range: 500 – 40,000 RPM
-
Torque: High-torque for all procedures
-
Light: Integrated LED in handpiece
Preparation Bench
Located behind the doctor’s seat:
-
Surface: Stainless steel or chemical-resistant laminate
-
Storage: Drawers for instruments and supplies
-
Purpose: Medication preparation, instrument staging
-
Features: Integrated sharps container, glove dispenser
Mercedes Dental Mobile Clinic Control Board
The electrical control board is situated in the cabinet system, designed for safety and reliability.
Specifications
| Feature | Detail |
|---|---|
| Standard | EN 60529 compliant (IP protection) |
| Construction | Sheet metal, powder-coated |
| Anti-Static Coating | External surfaces |
| Grounding | Full system grounding |
| Circuit Protection | Dedicated breakers for each circuit |
| Location | Adjacent to generator compartment |
Generator System
-
Power: 3kVA (3,000 watts) continuous
-
Fuel: Diesel or gasoline (matched to chassis fuel)
-
Location: External compartment with ventilation
-
Operation: Automatic start/stop option available
-
Noise: Sound-attenuated enclosure (<65dB)
Electrical System Features
-
Mains Connection: 220V / 110V available
-
Inverter: Pure sine wave for sensitive equipment
-
Battery System: Deep-cycle auxiliary batteries
-
Battery Charger: Smart charger with maintenance mode
-
Monitoring: Digital display of voltage and load
Water System
-
Type: Hot-cold pressurized system with hydrophore
-
Fresh Water: 80L – 200L depending on model
-
Waste Water: 60L – 150L
-
Heating: Instantaneous or tank-type water heater
-
Filtration: Incoming water filter system
-
Disinfection: UV sterilization option available
Air and Water Filtration
-
Water Filter: Removes particulates and sediment
-
Air Filter: Medical-grade, removes oil and moisture
-
Trap System: Prevents debris from entering lines
-
Drainage: Gravity or pump-assisted waste removal
Over-Current Protection
-
Main Breaker: 30A or 50A
-
Branch Circuits: Individual breakers for each system
-
GFCI: Ground fault protection on all patient circuits
-
Surge Protection: Whole-system surge suppression
Mercedes Dental Mobile Clinic: Exterior Features
Graphics and Branding
-
Design: Full-wrap graphics available
-
Material: High-durability vinyl
-
Features: Your practice name, logo, contact information
-
Options: Reflective for night visibility
Exterior Compartments
-
Generator Compartment: Vented, lockable
-
Storage: External access to supplies
-
Water Fill: Lockable, with level indicator
-
Electrical Connection: Shore power inlet
-
Air Connection: Optional external air hookup
Accessibility
-
Entry: Electric step or fold-out ramp
-
Door: Wide-opening with screen option
-
Wheelchair Lift: Optional for accessible care
Mercedes Dental Mobile Clinic: Technical Specifications
Chassis Details (Mercedes Sprinter)
| Specification | Detail |
|---|---|
| Wheelbase | 3,660 mm (long) |
| Overall Length | 5,930 mm – 7,360 mm depending on model |
| Overall Width | 2,020 mm (2,370 mm with mirrors) |
| Overall Height | 2,685 mm – 2,915 mm |
| Turning Radius | 13.6 – 15.4 meters |
| Fuel Tank | 75 – 93 liters |
| AdBlue Tank | 20 liters |
| Emissions | Euro 6d compliant |
Interior Climate Control
-
HVAC: Separate front and rear systems
-
Rear Unit: Medical-grade, HEPA filtration
-
Capacity: 20,000 – 30,000 BTU depending on model
-
Distribution: Multiple vents for even airflow
-
Control: Independent temperature zones
Soundproofing
-
Walls: Multi-layer acoustic insulation
-
Floor: Mass-loaded vinyl with foam backing
-
Windows: Dual-pane acoustic glass
-
Result: <65dB at treatment area during operation
Competitive Advantages of AmbulanceTech Mercedes Dental Mobile Clinics
1. Premium Chassis Foundation
Mercedes-Benz provides the finest foundation for mobile dental clinics. The Spriner platform offers:
-
Superior ride quality – less fatigue for staff
-
Legendary reliability – fewer breakdowns
-
Global service network – parts anywhere
-
Higher resale value – better investment protection
2. Medical-Grade Fabrication
Unlike RV conversions, AmbulanceTech builds to medical standards:
-
Seamless, cleanable surfaces
-
Infection control designed into every detail
-
Proper ventilation for aerosols
-
Medical electrical safety systems
3. Complete Integration
We don’t just install equipment in a van. Every system is engineered to work together:
-
Electrical capacity matched to equipment load
-
Water system designed for dental unit requirements
-
Compressor and suction sized for simultaneous use
-
Ergonomic workflow designed by dentists
4. Customization Capability
Your practice is unique. Your Mercedes dental mobile clinic should be too:
-
Left or right-hand drive
-
Single or dual chairs
-
Panoramic X-ray capable
-
Teledentistry integration
-
4×4 conversion for remote areas
-
Solar power for off-grid operation
5. Global Support
-
Factory-trained technicians
-
Remote diagnostics capability
-
48-hour parts shipping worldwide
-
Online training and documentation
Mercedes Dental Mobile Clinic: Applications
Private Practice Expansion
Add a second location without permanent lease costs. Serve affluent suburban communities on rotating schedules.
Rural and Remote Healthcare
Bring dentistry to communities without access. Our Mercedes dental mobile clinics operate reliably in challenging environments.
School-Based Programs
Contract with school districts for on-site dental care. Eliminate missed appointments and improve child oral health.
Corporate Wellness
Partner with corporations to provide on-site dental benefits. Reduce employee time away from work.
Government and Military
AmbulanceTech mobile dental units serve military bases, VA facilities, and public health departments worldwide.
Humanitarian Missions
Durable construction and reliable Mercedes engineering make our clinics ideal for disaster response and international aid.
Mercedes Dental Mobile Clinic Price Guide 2026
New Mercedes Dental Mobile Clinics
| Model | Description | Price Range (USD) |
|---|---|---|
| MB1000 | Sprinter Single-Chair | $98,000 – 125,000 |
| MB1000 4×4 | Sprinter 4×4 Single-Chair | $115,000 – 145,000 |
| MB2000 | Sprinter Dual-Chair | $145,000 – 185,000 |
| MB2000 4×4 | Sprinter 4×4 Dual-Chair | $165,000 – 210,000 |
| MB3000 | Atego + Trailer | $155,000 – 210,000 |
Certified Pre-Owned Mercedes Dental Mobile Clinics
| Year | Model | Mileage | Price (USD) |
|---|---|---|---|
| 2022 | Sprinter MB1000 | 42,000 km | $72,000 |
| 2023 | Sprinter MB1000 4×4 | 28,000 km | $89,000 |
| 2021 | Sprinter MB2000 | 65,000 km | $112,000 |
| 2022 | Trailer MB3000 | 15,000 km | $125,000 |
Equipment Package Options
| Package | Includes | Price (USD) |
|---|---|---|
| Basic | Chair, delivery system, light, suction | $22,000 |
| Standard | Basic + Kavitron, micromotor, compressor | $32,000 |
| Advanced | Standard + X-ray, autoclave, cabinetry | $45,000 |
| Premium | Advanced + panoramic X-ray, dual compressors | $58,000 |
Frequently Asked Questions
How much does a Mercedes dental mobile clinic cost?
A new Mercedes dental mobile clinic ranges from $98,000 to $210,000 USD depending on model and equipment. Used units start at $72,000.
What’s included in the base price?
Base price includes the Mercedes chassis, interior construction, plumbing and electrical rough-in, and HVAC system. Dental equipment packages are additional.
How long does manufacturing take?
-
MB1000: 14-18 weeks
-
MB2000: 18-22 weeks
-
MB3000: 16-20 weeks
-
Used units: Available immediately
What warranty do you offer?
-
New units: 3-year structural, 1-year systems
-
Mercedes chassis: Standard factory warranty
-
Dental equipment: Manufacturer warranties pass-through
Can I get a manual transmission?
Yes. While most clients prefer the 7-speed automatic, manual transmission is available on select models.
Do you offer financing?
Yes. 60-month terms starting at 4.9% APR. Lease options available.
What about 4×4 capability?
The Mercedes Sprinter 4×4 is available for all MB1000 and MB2000 models. Add $15,000-22,000 for factory 4×4.
Do you ship internationally?
Yes. AmbulanceTech delivers Mercedes dental mobile clinics worldwide. We handle all logistics and customs.
Contact AmbulanceTech
Ready to discuss your Mercedes dental mobile clinic?
