Chevrolet G-Van Cargo Ambulance
The Chevrolet G-Van Cargo Ambulance is a classic, durable, and highly customizable solution for emergency medical transportation. Built on the Chevrolet Express 3500 / G3500 / G4500 cargo van chassis, this platform is known for its reliability, ease of maintenance, and large cargo space. It is the ideal choice for organizations seeking a practical and cost-effective alternative to high-end European or heavy-duty ambulances.
Whether deployed in urban or rural areas, this vehicle serves BLS (Basic Life Support) and ALS (Advanced Life Support) transport needs with efficiency and dependability. It is a favored model among private EMS providers, municipal services, NGOs, and export markets seeking value, durability, and fast deployment.
Vehicle Specifications
| Specification | Detail |
|---|---|
| Base Model | Chevrolet Express 3500 / G3500 / G4500 |
| Body Type | Cargo Van (Cutaway available for modular box) |
| Engine Options | 6.6L V8 Gasoline / 4.3L V6 / 6.0L V8 (older models) |
| Transmission | 6-speed automatic |
| Drivetrain | 4×2 RWD (rear-wheel drive) |
| Fuel Capacity | 31 gallons (117 liters) |
| Alternator | 220A high-output |
| Suspension | Heavy-duty with rear stabilizer bar |
| Brakes | Hydraulic 4-wheel ABS with disc brakes |
| Wheelbase | 135″ or 159″ depending on model |
| Payload Capacity | 3,200–4,000 lbs (approx.) |
Key Advantages
| Advantage | Description |
|---|---|
| Ease of Repair | Simple mechanical design, widely understood by mechanics |
| Parts Availability | Readily available spare parts globally |
| Low Maintenance Cost | Significantly lower than imported or heavy-duty platforms |
| Fast Deployment | 4-8 week production time |

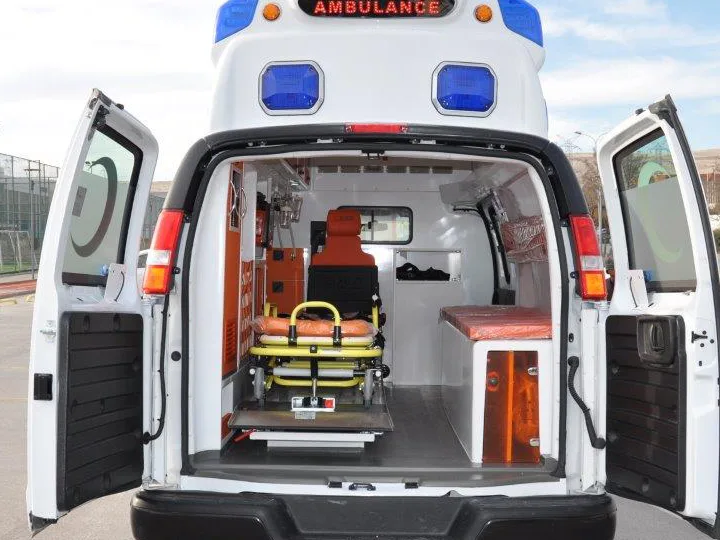

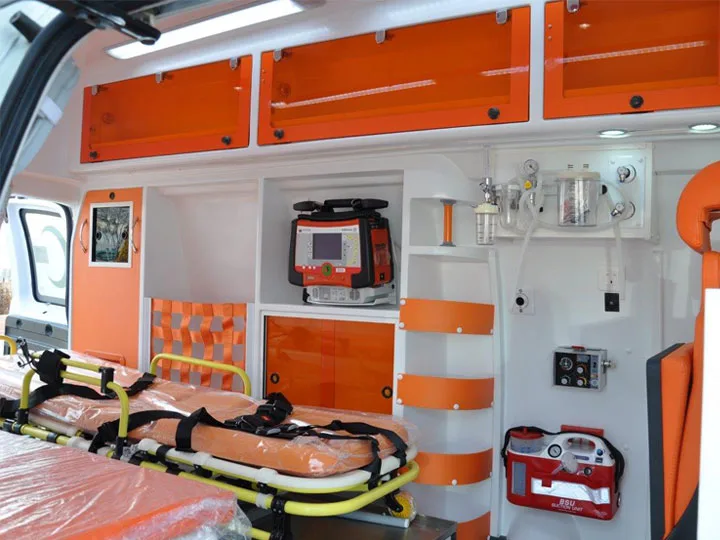

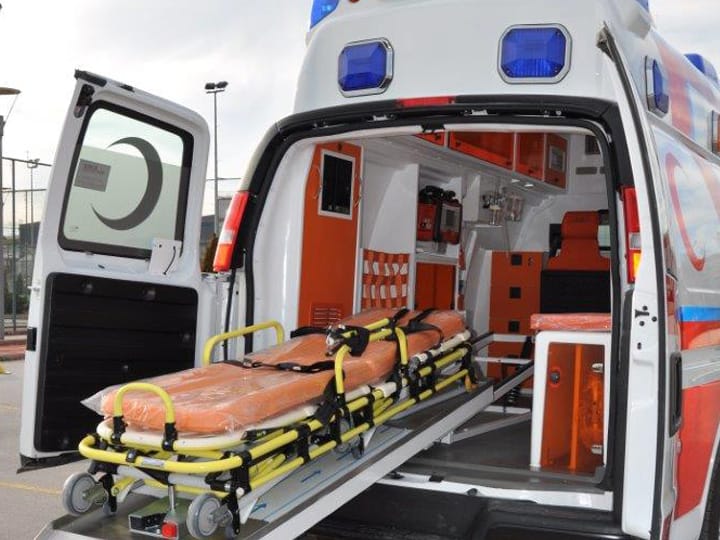

Ambulance Interior and Medical Equipment
BLS (Basic Life Support) Configuration
| Component | Description |
|---|---|
| Stretcher System | Primary stretcher with manual lock type |
| Seating | Foldable attendant seat with seatbelt |
| Oxygen System | Wall-mounted cylinder holder (M or D size) |
| Lighting | Basic system with dome and reading lights |
| Storage | Space for trauma kits, spine boards, and splints |
| Safety | Fire extinguisher and sharps container |
ALS (Advanced Life Support) Configuration
| Component | Description |
|---|---|
| Cabinetry | Upgraded medical-grade cabinets |
| Oxygen Supply | Onboard system with dual outlets |
| Suction Unit | Portable or fixed suction system |
| Medical Space | Space for defibrillator, airway kit, medications |
| Electrical | DC-to-AC inverter (1500–2000W) |
| Control Panel | Illuminated control panel |
| Backup Power | Backup battery with charging indicator |
Optional Medical Equipment
-
AED or manual defibrillator
-
Portable ventilator
-
Cardiac monitor
-
IV holders and secure medication drawers
-
Locking cabinets for narcotics
Interior Finishes
| Feature | Specification |
|---|---|
| Wall Coating | Non-slip, antibacterial, fire-retardant materials |
| Climate Control | Accessible from driver’s cab and patient area |
| Lighting Control | Accessible from both compartments |
Electrical System and Safety Features
| Feature | Description |
|---|---|
| Medical Power System | Dedicated system isolated from starter battery |
| Inverter/Charger | Complete system with external shore line connection |
| Warning Lights | LED roof-mounted and grille strobes |
| Siren System | Dual siren with PA microphone |
| Safety Monitors | Oxygen leak sensor, smoke detector, CO2 monitor |
| Optional | Back-up camera and motion sensors |
| Power Management | Automatic load manager for critical systems |
Compliance and Certification
| Standard | Description |
|---|---|
| KKA / DOT / FMVSS | Compliant for North America and similar markets |
| ISO 9001 & ISO 13485 | Certified production processes |
| CE Marking | Medical equipment certification |
| KKK-A-1822F | Electrical installations (where required) |
| EN 1789 | Adaptable for global exports |
Global Export and Delivery
| Service | Description |
|---|---|
| Chassis Sourcing | North American origin |
| Conversion | Complete ambulance build |
| Shipping | Sea or air freight |
| Documentation | Export invoices and customs clearance |
| Training | User manuals and training material |
| Spare Parts | Optional parts kit |
| Homologation Support | Assistance with road compliance |
| Markets Served | Africa, Latin America, Middle East, Southeast Asia |
Chevrolet Ambulance Cost
The Chevrolet G-Van offers a more economical solution compared to European and heavy-duty ambulance platforms, with advantages including:
-
Lower acquisition cost
-
Fast production and shipping (4-8 weeks)
-
Readily available parts
-
High performance with simple maintenance
Note: Price depends on configuration level (BLS/ALS), equipment options, and destination country. Contact us for a detailed proposal including technical specs, production timeline, and export costs.
Contact Information
AmbulanceTech / Infinity Chassis Units
Ankara, Turkey
Email: sales@ambulancetech.com
Telephone: +90 555 104 06 48
Looking for a dependable, cost-effective ambulance built on the Chevrolet platform? Contact us now for a personalized quotation for your Chevrolet G-Van Cargo Ambulance, with options to match your clinical, budgetary, and regulatory needs.
| Ambulance type | A – Patient Transport, B – Emergency |
|---|---|
| Certification | EN 1789, KKK Type II |
| Drive type | 4×4, RWD |
| Powertrain fuel type | Diesel |
| Roof type | High Roof |
| Vehicle brand | Chevrolet |
